i-70E
Suitable for general lathes / milling machines
| Item / Model | i70E ( Invert system built-in ) |
|---|---|
| Foot Print ( mm ) | 1070 x 500 x 630 |
| Weight ( kg ) | 150 |
| Capacity ( L. / min ) | 35 |
| Max Pressure ( Bar ) | Standard ( 0 - 70 Bar ) , Option ( 0 - 200 Bar ) |
| Voltage ( V ) | 220 - 440 |
| Frequency ( HZ ) | 50 / 60 |
| Application | General turning / milling machines, most high pressure applications without cooling control |
| Invert Motor | O |
|---|---|
| Cooler | X |
| Switchable Filter | O |
| Switchable Outlet | Δ |
| Pre-Filter Unit | Δ |
| Piston Pump | O |
| Sub-Tank | O |
| Work-lamp | Δ |
| 7 inch Touch Screen | O |
| i-Cyclone | Δ |
O: STD Δ: OPT. X: NON

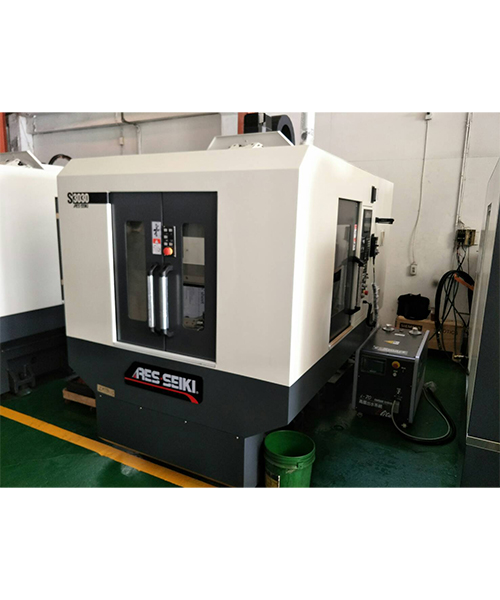

i-70E : It can be easily placed next to the machine and does not take up space. Variable frequency automatic constant pressure control, no matter how tools hole changes, it can automatically constant pressure
