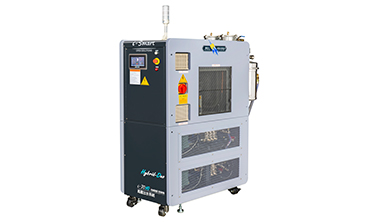

i-70HD
i-70HD Hybrid Duo
Duo Together we perform better !!
1 CTS to 2 CNC application or 2 pump working in parallel stay pressure Maximum
| Item / Model | i70HD ( Invert system built-in ) |
|---|---|
| Foot Print ( mm ) | 1000 x 560 x 1680 |
| Weight ( kg ) | 400 |
| Capacity ( L. / min ) | 35 |
| Max Pressure ( Bar ) | Standard ( 0 - 70 Bar ) , Option ( 0 - 200 Bar ) |
| Voltage ( V ) | 220 - 440 |
| Frequency ( HZ ) | 50 / 60 |
| Invert Motor | O |
|---|---|
| Cooler | O |
| Switchable Filter | O |
| Switchable Outlet | Δ |
| Pre-Filter Unit | Δ |
| Piston Pump | O |
| Sub-Tank | O |
| Work-lamp | Δ |
| 7 inch Touch Screen | O |
| i-Cyclone | Δ |
O: STD Δ: OPT. X: NON
